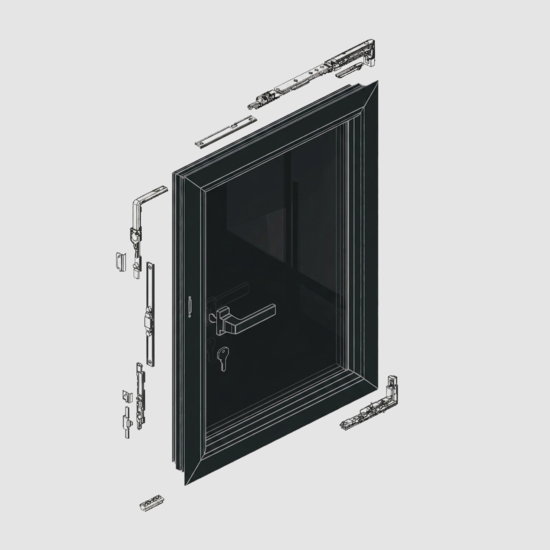

Archimede 6.0 is not just a tilt sash, it's a system engineered with logic, balance, and industrial vision.
Archimede 6.0 is more than a tilt & turn system. It is a complete solution engineered to simplify manufacturing, optimise assembly and deliver a clean, modern design.
The new generation of tilt & turn hardware by Esinplast has been developed to overcome the limitations of traditional systems, combining innovative technology with tangible benefits for window and door manufacturers.
From profile machining to final assembly, every detail has been designed to make production faster, simpler and more efficient.
The innovative Snap-Fit system eliminates the need for traditional machining at the profile corner.
Fewer machining operations mean a more efficient production process, reduced processing times and lower manufacturing costs.
The new Snap-Fit connection allows the drive rods to be clipped directly into position with the sash closed, eliminating the traditional slide-in insertion method.
This significantly simplifies assembly and reduces the time required in the workshop.
The innovative geometry of the drive rods allows Archimede 6.0 to be installed on particularly slim profiles.
The result is a more discreet hardware solution that supports the development of modern, minimal window and door designs.
Archimede 6.0 has been tested for loads of up to 130 kg, providing high strength, reliability and long-term performance.
A smarter way to assemble the hardware.

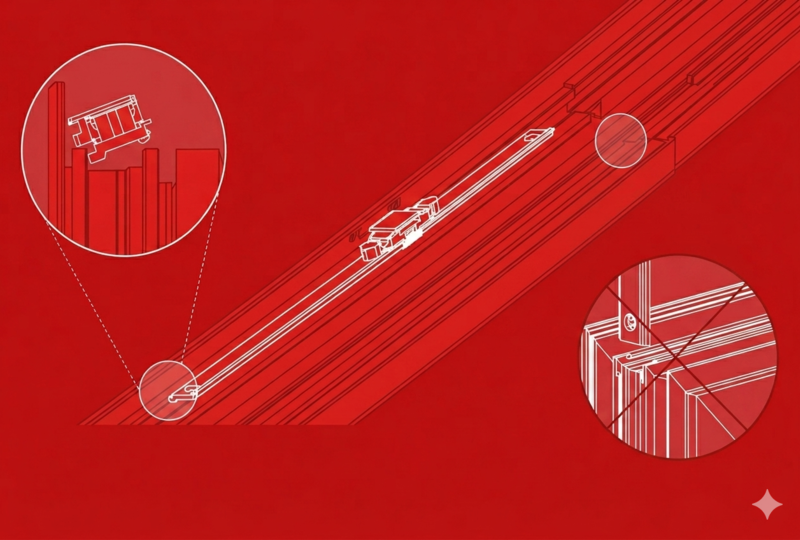

The technological heart of Archimede 6.0 is the innovative Snap-Fit rod connection.
Unlike traditional systems, where the rods are inserted by sliding them into position, Archimede 6.0 allows the rods to snap into place with the sash closed.
This eliminates the traditional slot or cut-out required for the installation of the one-way drive mechanism, reducing profile machining and allowing the use of slimmer profiles.
The result is a simpler and more precise assembly process, with fewer operations and improved production efficiency.
One less machining operation.
Less time. Less cost.
To further optimise production, Esinplast has developed a dedicated punching machine specifically designed to perform the required machining operations quickly, accurately and consistently.
Direct operation.
Simplified hardware. Reduced production costs.
The new generation of handles developed for Archimede 6.0 introduces a further important advantage in the manufacturing process.
Thanks to the new handle concept, the traditional DK (Dreh-Kipp) drive mechanism is no longer required.
The handle interfaces directly with the Archimede 6.0 system, eliminating an additional component and one machining and assembly operation.
This means:
A simpler and more efficient production process.
This is more than a component innovation: it is a production advantage.
By eliminating unnecessary components and operations, Archimede 6.0 helps manufacturers reduce processing times and optimise overall production costs while maintaining high standards of reliability and performance.
Archimede 6.0 combines technical performance, manufacturing efficiency and contemporary aesthetics in one integrated solution.
The combination of Snap-Fit technology, simplified profile machining and the new direct-action handle concept creates a hardware system designed around the real needs of modern window and door production.
ARCHIMEDE 6.0
Less machining.
Faster assembly.
Fewer components.
Lower costs.
More design freedom.
